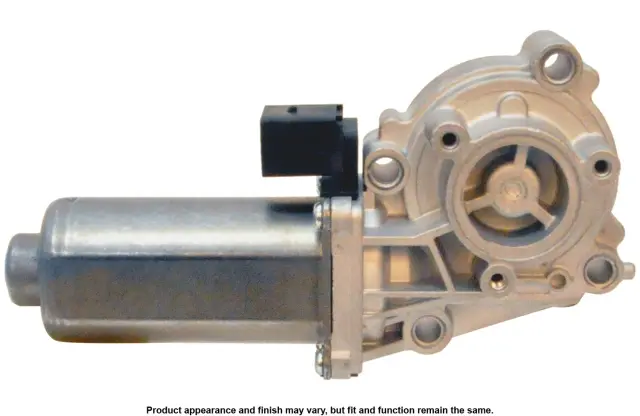

Transfer Case Motor - Cardone (83-1002)
- Sale Price: $173.63
Details
Details
- Brand:
- SKU:
83-1002
- GTIN: 00884548304048
- UPC: 884548304048
- Description:
Engage and disengage your 4WD or AWD system seamlessly with the CARDONE New Transfer Case Motor, part number A183-1002. This electric actuator motor rotates the shift forks inside the transfer case, allowing the vehicle to transition between 2WD, 4WD high, and 4WD low modes. The CARDONE New motor features corrosion-resistant internals, sealed electrical connectors, and torque-calibrated gearing for fast and accurate range shifting. A must-have for vehicles experiencing delayed engagement, stuck gear ranges, or dashboard warning lights related to transfer case position. SEO keywords: 4WD shift motor, transfer case actuator, electric range motor, AWD mode selector motor.
- Condition: New
Additional Information
Additional Information
| Brand | CARDONE New |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Contains Electronic Components | No |
| Does it require SDS | No |
| E-Waste | Yes |
| FAA_A1 | Do not operate the motor while it is off the transfer case. This can damage the motor and set an error code that must be cleared before the motor will operate again. Shift the transfer case into the position of the motor to install. |
| FAA_A2 | Yes, the transfer case should be manually shifted into the two-wheel drive position at the shift shaft before the installation of the replacement motor. Typically the positions are spring-loaded and can be rotated manually. |
| FAA_A3 | A crescent wrench can be used for this operation. |
| FAA_A4 | The replacement motor drive is factory-set in the 2 wheel drive position. |
| FAA_A5 | This may be caused by a transfer case control module calibration issue. Check for DTC's and calibration version − there may be a software update from the Original Equipment Manufacturer. If the motor attempts to shift, but sounds weak, check the front axle lock actuator. If the axle lock does not engage, the motor cannot complete its engagement. |
| FAQ_Q1 | The replacement motor drive is in a different position, can I reposition before installing? |
| FAQ_Q2 | Can I install the replacement motor if my Transfer Case motor failed in 4 Wheel Drive Low or High? |
| FAQ_Q3 | What tool can I use to manually shift the transfer case into the two-wheel drive position before I install the replacement motor? |
| FAQ_Q4 | What drivetrain position is the replacement motor drive placed in? |
| FAQ_Q5 | The Service 4WD light is on and/or the 4WD is inoperative. What could cause this condition? |
| Gear of Chain Type | Gear |
| Grade Type | Performance |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Manufacturer Brand | CNRD |
| Mount Type | Bolt |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Package Contents | Transfer Case Motor; Instruction Sheet |
| Shift Operation Type | Electronic |
| Sprocket Tooth Quantity | 22 |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Pin |
| UPC | 00884548304048 |
| Wiring Harness Included | No |
