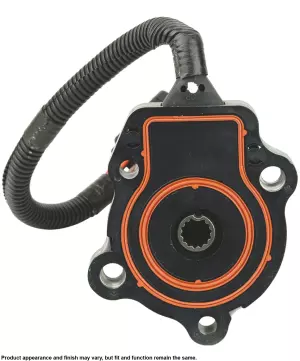

Transfer Case Motor - Cardone (48-101)
- Core Charge: $16.20 Core Charge Applies
Review Fitment & Product Details
Details
- Brand:
- SKU:
48-101
- GTIN: 00082617612166
- UPC: 082617612166
- Description: CARDONE Remanufactured Transfer Case Motors are designed to meet or exceed O.E. performance. Reverse engineering provides insight into how and why the unit originally failed, allowing our engineers to identify and correct original design weaknesses. Each unit is 100% computer tested at three points during the remanufacturing process to ensure reliability. CARDONE is committed to getting your vehicle back to peak performance with our direct-replacement transfer case motors.
Transfer Case Mtr - Condition: Remanufactured
Pricing is valid online only and may vary in your local store
Vehicle Fitment
Vehicle Fitment
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|
Key Product Information
Additional Information
| Brand | CARDONE Reman |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Contains Electronic Components | No |
| Does it require SDS | No |
| E-Waste | Yes |
| FAA_A1 | Do not operate the motor while it is off the transfer case. This can damage the motor and set an error code that must be cleared before the motor will operate again. Shift the transfer case into the position of the motor to install. |
| FAA_A2 | Yes, the transfer case should be manually shifted into the two-wheel drive position at the shift shaft before the installation of the replacement motor. Typically the positions are spring-loaded and can be rotated manually. |
| FAA_A3 | A crescent wrench can be used for this operation. |
| FAA_A4 | The replacement motor drive is factory-set in the 2 wheel drive position. |
| FAA_A5 | This may be caused by a transfer case control module calibration issue. Check for DTC's and calibration version − there may be a software update from the Original Equipment Manufacturer. |
| FAQ_Q1 | The replacement motor drive is in a different position, can I reposition before installing? |
| FAQ_Q2 | Can I install the replacement motor if my Transfer Case motor failed in 4 Wheel Drive Low or High? |
| FAQ_Q3 | What tool can I use to manually shift the transfer case into the two-wheel drive position before I install the replacement motor? |
| FAQ_Q4 | What drivetrain position is the replacement motor drive placed in? |
| FAQ_Q5 | The Service 4WD light is on and/or the 4WD is inoperative. What could cause this condition? |
| FAQ_Q6 | If the motor attempts to shift, but sounds weak, check the front axle lock actuator. If the axle lock does not engage, the motor cannot complete its engagement. |
| Gear of Chain Type | Gear |
| Grade Type | Performance |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Manufacturer Brand | CPCX |
| Mount Type | Direct Bolt |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Package Contents | Transfer Case Motor; Instruction Sheet |
| Shift Operation Type | Electronic |
| Sprocket Tooth Quantity | 13 |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Blade |
| UPC | 00082617612166 |
| Wire Quantity | 7 |
| Wiring Harness Included | Yes |
| Wiring Harness Length | 349.25 |
Features and Benefits
Key Product Benefits
- All motors are 100% torque tested to ensure strength for proper gear engagement.
- Each unit is 100% computer tested at 3 points during the remanufacturing process for guaranteed performance.
- Every motor is assembled with the precise amount of lubricant to ensure quiet operation and long life.
- Motor magnets are 100% recharged for superior performance and reliability.
- Transfer case motor sensors are 100% replaced with new, O.E.-quality sensors for superior performance and long product life.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
Interchange
Interchange
Policies
Policies
Product Reviews
Brand
Cardone
Shop Official CARDONE Remanufactured Motors, Pumps & Electronics | AutoNation Parts
Explore our in-stock catalog of CARDONE remanufactured components at AutoNation’s Aftermarket Store. Since releasing its first product — a remanufactured wiper motor — in 1970, CARDONE has grown into one of the industry's largest remanufacturers, offering over 46,000 SKUs across brakes, drivetrain, electronics, fuel/air, motors, pumps, and steering, each rebuilt from an O.E. core and tested to match original performance.
- O.E. Core Rebuilding Process: Every unit starts as an original-equipment core, is disassembled, inspected, and renewed — with weak solder points 100% reflowed and motor magnets 100% recharged before final testing against O.E. specifications.
- Component-Level & Full-Function Testing: Main components (armature, field, bearings, parking switch, or pulse board where applicable) are individually tested or gauged against O.E. standards, then the finished unit is tested for every function it performs on the vehicle.
- Lower Environmental Impact: CARDONE states its remanufacturing process reduces the energy and raw material needed versus producing a new part by roughly 80%.
Popular CARDONE categories available:
- CARDONE Remanufactured Wiper & Window Motors
- CARDONE Remanufactured Power Steering Pumps
- CARDONE Remanufactured ECMs & Throttle Bodies
- CARDONE Remanufactured Distributors & Drive Shafts
Frequently Asked Questions for Transfer Case Motor
What does "remanufactured" mean, and is it as good as a new part?
A remanufactured part starts life as an original-equipment core that's fully disassembled, inspected, and rebuilt to original specifications — worn components like bearings and solder joints are replaced or restored, and magnets are recharged. Each CARDONE unit is tested against O.E. standards both component-by-component and as a finished assembly, so it's built to deliver the same performance as the original part, often at a lower cost than new.
What is a core charge, and how do I get it back?
Many CARDONE remanufactured parts carry a core charge — a deposit added at checkout that's refunded when you return your old, failed part (the "core") to be remanufactured into a future product. Check the product page for 48-101 to see if a core charge applies, and follow the return instructions included with your order to get that deposit back.
Why does my wiper motor stop in the middle of the windshield instead of parking properly?
On motors without hidden wiper blades, this is usually caused by crank arm position — adjusting the crank arm angle on the motor shaft will correct where the wipers park. Vehicles with a "hidden park" feature may need a specific reset procedure; check your vehicle's service manual for the exact steps.
I installed a new wiper motor but reused my old washer pump, and it doesn't work. Is the motor defective?
Not necessarily. Some wiper motor systems won't operate correctly if the washer pump itself is faulty, since the two components can be electrically linked. Bench test both the wiper motor and washer pump separately before assuming the new motor is defective.
