- Brand:
- SKU:
27-7627
- GTIN: 00082617776936
- UPC: 082617776936

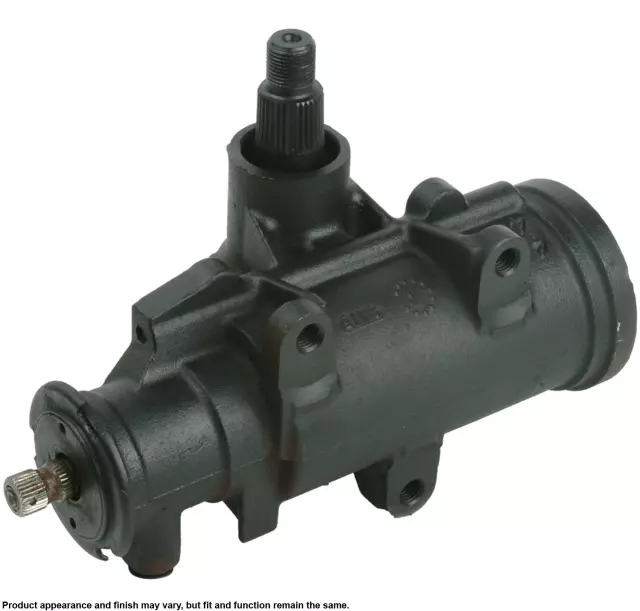

- Description: The steering gear box is the heart of the vehicle’s steering system. It guides the wheels’ movement in conjunction with the direction that the steering wheel is rotated, helping achieve ideal steering response for more efficient driving. CARDONE Remanufactured Steering Gear Boxes are re-engineered, built and tested to match O.E. performance. E ach unit features 100% new O-rings and lip seals to ensure leak-free, long-lasting performance. Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life. All units are 100% hydraulically tested to ensure perfect fit and function.
Pwr Steering Gear - Condition: Remanufactured
Additional Information
Additional Information
| Brand | CARDONE Reman |
| Contains Electronic Components | No |
| Does it require SDS | No |
| E-Waste | No |
| FAA_A1 | Hoses should be replaced if they appear brittle or if there are any kinks or leaks. |
| FAA_A2 | The difference is the orientation of the teeth on the pitman shaft and power piston. Variable teeth will have a faster ratio than non-variable teeth. |
| FAA_A3 | In a standard rotation gear box, the input and pitman shaft rotate in the same direction. The shafts turn in opposite directions on a reverse rotation gear box. |
| FAA_A4 | Not recommended. The preload is adjusted at the time of assembly. If excessive play is present, it’s due to wear of internal components. If adjustment is attempted, it could lead to binding. |
| FAQ_Q1 | Should the power steering hoses be replaced? |
| FAQ_Q2 | What is the difference between a fast ratio and a slow ratio gear box? |
| FAQ_Q3 | How can I tell if my gear box is a standard or reverse rotation? |
| FAQ_Q4 | Can I adjust my original gear box if it has a lot of play? |
| Hose Port Type | O-Ring |
| Input Shaft Diameter | 19.9898 |
| Input Shaft Spline Quantity | 25 |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Manufacturer Brand | CPCX |
| Mounting Hardware Included | No |
| Output Shaft Diameter | 31.75 |
| Output Shaft Spline Quantity | 32 |
| Output Shaft Thread Diameter | 21.95 |
| Package Contents | Gear; Instruction Sheet; Instruction Tag; Sealing Kit |
| Power Assisted | Yes |
| Pressure Port Thread Diameter | 17.73 |
| Pressure Port Thread Size | 18x1.5 |
| Return Port Thread Diameter | 15.75 |
| Return Port Thread Size | 16x1.5 |
| Splined Input Shaft | Yes |
| Total Turns Lock To Lock | 2.75 |
| UPC | 00082617776936 |
