Details
Details
- Brand:
- SKU:
13546785
- GTIN: 00195491281165
- UPC: 195491281165
- Positions: Front, Rear
- Other Names:
13546785

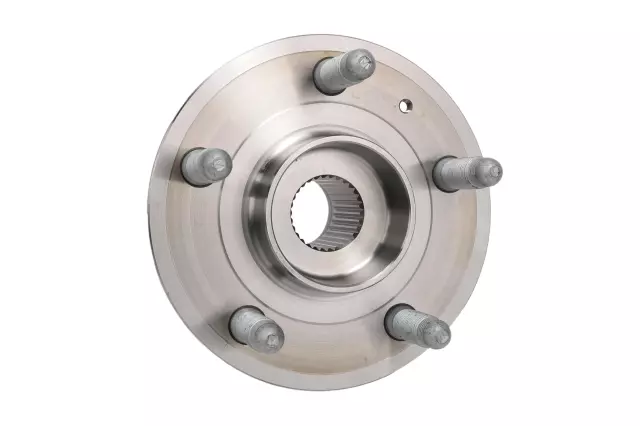

- Description: GM Genuine Parts Wheel Bearings are designed, engineered, and tested to rigorous standards, and are backed by General Motors. These wheel bearings allow the wheel to rotate with minimal friction. Wheel bearings support the weight of the vehicle and are lubricated with axle oil or wheel bearing grease. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE). ⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Condition: New
Additional Information
Additional Information
| Brand | GM Genuine Parts |
| Bearing Type | Ball |
| Bolt Circle Diameter (in) | 4.72 |
| Bolt Circle Diameter (mm) | 120 |
| Brake Pilot Diameter | 6.18 157 |
| Features & Benefits - Bullet 1 | Allows the wheel to rotate with minimal friction |
| Features & Benefits - Bullet 10 | Helps protect the bearing from Brinell damage caused by curb and pothole impact with strong static strength |
| Features & Benefits - Bullet 11 | Developed with a thermal shock test that all GM OEM bearings must pass for improved low-temperature performance |
| Features & Benefits - Bullet 12 | Controlled dimensions for bearings and all mating parts helping all GM OE around the wheel parts function properly |
| Features & Benefits - Bullet 13 | Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE) |
| Features & Benefits - Bullet 14 | GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors |
| Features & Benefits - Bullet 15 | GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle |
| Features & Benefits - Bullet 16 | GM regularly updates production and service part designs to integrate new materials and technologies |
| Features & Benefits - Bullet 2 | Supports the weight of the vehicle |
| Features & Benefits - Bullet 3 | Maximum lateral stiffness for ride, handling, and driving dynamics |
| Features & Benefits - Bullet 4 | GM parts are built to help withstand potholes and designed to help maximize seal life |
| Features & Benefits - Bullet 5 | GM bearing designs are dimensionally optimized to work with their mating parts |
| Features & Benefits - Bullet 6 | Designed for GM specific vehicle applications for proper fit, form, and function |
| Features & Benefits - Bullet 7 | High quality manufacturing process for consistency and long-term performance |
| Features & Benefits - Bullet 8 | High capacity ball or roller designs create a high rotating fatigue life |
| Features & Benefits - Bullet 9 | Certified high-grade bearing steel cleanliness for smaller, or less non-metallic, inclusions |
| Flange Bolt Hole Diameter | 0.38 9.6 |
| Flange Bolt Hole Quantity | 3 |
| Flange Bolts Included | No |
| Flange Diameter | 5.67 144 |
| Flange Shape | Triangular |
| Good Maintenance Practices - Section 1 - Bullet 1 | Be sure to have the bearing properly aligned when pressing it into the spindle assembly and do not overtighten center hub bearing to constant velocity shaft nut. |
| Good Maintenance Practices - Section 1 - Bullet 2 | Follow the manufacturers recommended torque specification. |
| Inside Diameter | 34 1.34 |
| Outside Diameter | 6.18 157 |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 1 | Grinding or humming noise from bearing assembly maybe more noticeable while turning |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 2 | Tire and wheel vibration |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 3 | Excessive play at tire and wheel |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Wheel hot to the touch |
| Signs of Wear & Troubleshooting - Section 1 - Header | Signs of wear for wheel bearings include but are not limited to: |
| Spline Quantity | 30 |
| Wheel Pilot Diameter | 2.65 67.33 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 0.55 14 |
| Wheel Studs Included | Yes |
| Width | 113.45 4.47 |
